Working with URL Insight

To view requests reports:

1. In the Zend Server UI, go to the Overview | URL Insight page.
2. In the Filter Bar, filter the requests reports:
   • Application - Filter the reports by an application managed by Zend Server.
   • Period - Filter the reports according to a specific time period (Last 2 Hours, Last 24 Hours, Last 48 Hours, Last Week, Last Month, Last 3 Months, Last 6 Months, Last Year, All).

   The Requests Reports section displays requests according to the selected filters.

3. In the Requests Reports section, select a request from one of the three request reports:
   • Most Time Consuming - Requests that consumed the most time from the Web server (i.e. average server processing time X number of requests).
   • Slowest - Requests with the slowest response time from the Web server.
   • Most Popular - Most frequently called requests .
4. The sections below display relevant information on the selected request. For a full breakdown of the various sections on this page, see URL Insight.
5. In the Z-Ray Snapshots section at the bottom of the page, select one of the snapshot tabs to view a snapshot of the request as monitored by Z-Ray.
6. Use Z-Ray to drill down into the request and view details on database queries, errors and warnings, events, and more. For more information on using Z-Ray, see Developing with Z-Ray.

Note:

If Z-Ray is not displayed, make sure it is enabled. For more information on enabling Z-Ray, see Enabling/Disabling Z-Ray.

To configure URL Insight:

1. In the UI, go to the Configurations | Components page.
2. From the Components list, select the Zend URL Insight component.

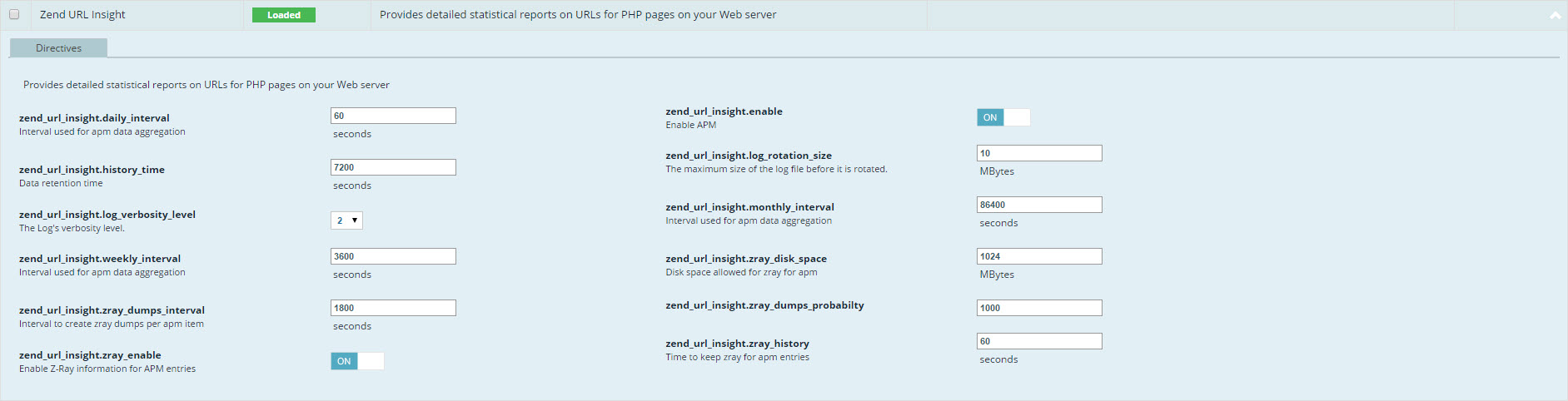

   The expanded view displays all available configuration directives.

3. Configure the directives as you see fit, and in the Action bar, click Save.

4. In the toolbar, the restart icon lights up , indicating a restart is needed to apply changes. Click to restart server and apply changes.
   For information on restarting in Zend Server, see Server Restart.

To define an MVC structure:

<?php
	class ZF2Plugin extends ZAppsPlugin {
		public function resolveMVCEnter($context) {
		}
		public function resolveMVCLeave($context) {
			if (!$this->resolved) {
				$routeMatch = $context['functionArgs'][0];
				if ($routeMatch) {
					$params = $routeMatch->getParams();
					if ($params) {
						$this->resolved = true;
						$mvc = array();
						if (isset($params['module'])) {
							$mvc['module'] = $params['module'];
						}
						if (isset($params['controller'])) {
							$mvc['controller'] = $params['controller'];
						}
						if (isset($params['action'])) {
							$mvc['action'] = $params['action'];
						}
						$this->setRequestMVC($mvc);
					}
				}
			}
		}
		private $resolved = false;
	}
$zf2Plugin = new ZF2Plugin();
$zf2Plugin->setWatchedFunction("Zend\Mvc\MvcEvent::setRouteMatch", array($zf2Plugin, "resolveMVCEnter"), array($zf2Plugin, "resolveMVCLeave"));
