Using Z-Ray

To open a Z-Ray panel (Page Requests/Monitor Events/Log Entries/Database Queries/Functions/Variables), select the relevant icon. Selecting will pin the panel to your browser.

To navigate between open panels, simply select a different icon.

To close a Z-Ray panel, click the minimize icon in the Action bar.

Use the navigation arrows to scroll right and left to access other Z-Ray panels.

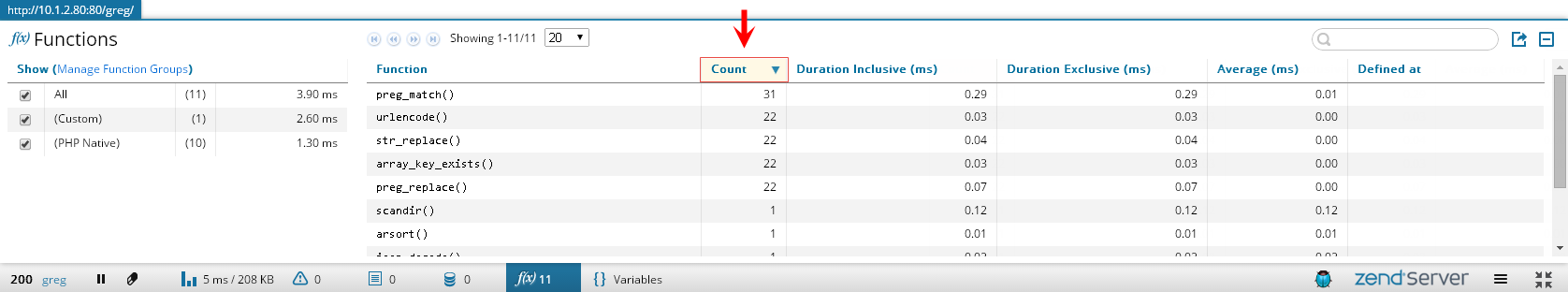

To sort information in the various section tables according to a specific column, click the column title.
The column title is highlighted, and a blue arrow head is displayed, indicating that the information is currently sorted according to that column.

The direction of the arrow head indicates the sorting order - ascending or descending. Click the column title again to change the order.

To pause recording in Z-Ray, click the Pause icon .

To resume recording in Z-Ray, click the Play icon .

To clean request information in Z-Ray, click the Clean Requests icon on the right side of Z-Ray.

To close Z-Ray, click the Menu icon on the right side of Z-Ray, and select one of the following options:

• Close - Close Z-Ray on the current page. The Z-Ray will be displayed again when the page is reloaded.
• Close for session - Close Z-Ray for the entire browser session. The Z-Ray will be displayed again when the page is opened in a new browser session.

To collapse or expand Z-Ray, click the Minimize/Maximize icons on the right side of Z-Ray.

Note:

Closing Z-Ray does not disable it, and once the page is reloaded, either in the same browser session or in a different browser session, Z-Ray will be displayed again. To learn how to completely disable Z-Ray, see Enabling/Disabling Z-Ray.

Tip:

Press Ctrl+Alt+C to collapse or expand Z-Ray.

To export data from Z-Ray:

In an open Z-Ray panel, click the Export icon in the Action bar.
The information is displayed on a separate page in your browser.

Tip:

You can also export from the various Z-Ray backtrace panels.
