Servers

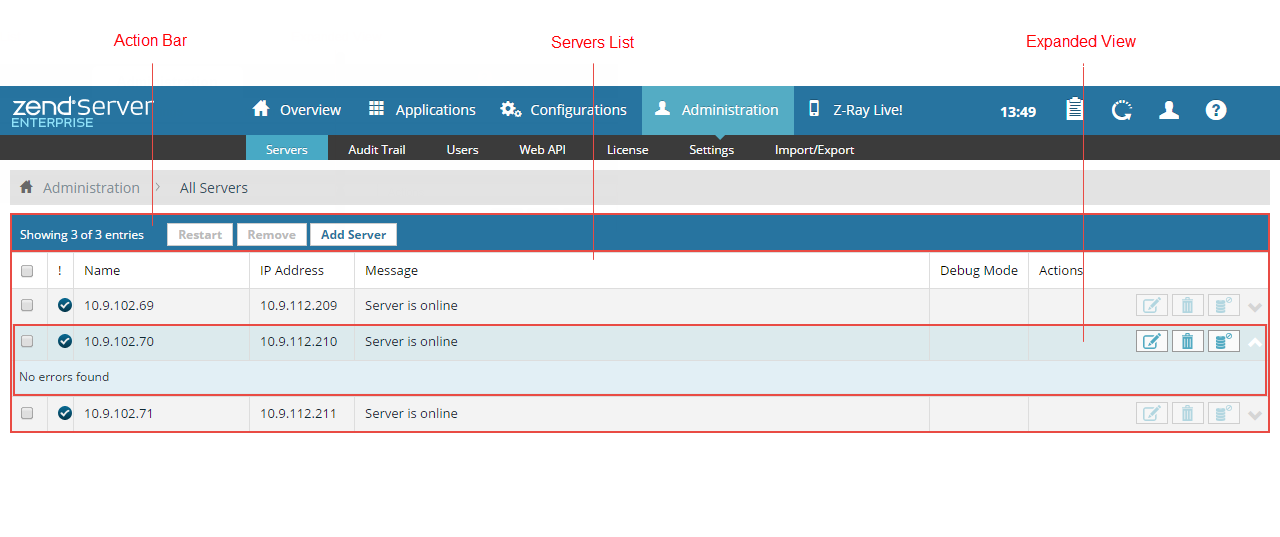

The Action bar is located at the top of the page, and is used to configure your cluster members:

Name	Button	Description
Restart		Perform a full restart of the selected servers.
Add Server		Add a new server to the cluster. Note: Appears on the Acton bar if the server is a cluster member.
Join Cluster		Join your server to a cluster. Note: Appears on the Action bar if server is not a cluster member.
Remove		Completely remove the selected server from the cluster.

Existing servers are displayed in a list. Each server in the list is located on a separate line.

The information for each listed server is sorted into columns. Each column contains a different type of server-related information:

• ! - The status of the server ().
• Name - The name of the server.
• IP Address - The IP address of the cluster member.
• Message - Related messages (e.g., Server in Warning state).
• Debug Mode - Indicates whether the server is in Debug ModeIn Debug Mode, every request made to your server initiates a debugging session in Zend Studio. This mode can only be enabled from Zend Studio..
• Actions - Server action items (appear when applicable):


  Name	Icon	Description
  Edit		Edit the selected server's name.
  Remove		Removes the selected cluster member.
  Enable/Disable		Enable or disable the selected cluster member.
  Revert changes		Cancels changes for selected server and reverts to cluster (blueprint) settings
  Apply changes		Applies changes for selected server and updates cluster (blueprint) settings

Selecting a server from the Servers list, or clicking the Expand View arrow on the right, displays a list of error messages associated with the selected server (e.g., 'The directive 'max_input_time' is mismatched: expected '60', actual '300'').
