Working with Events

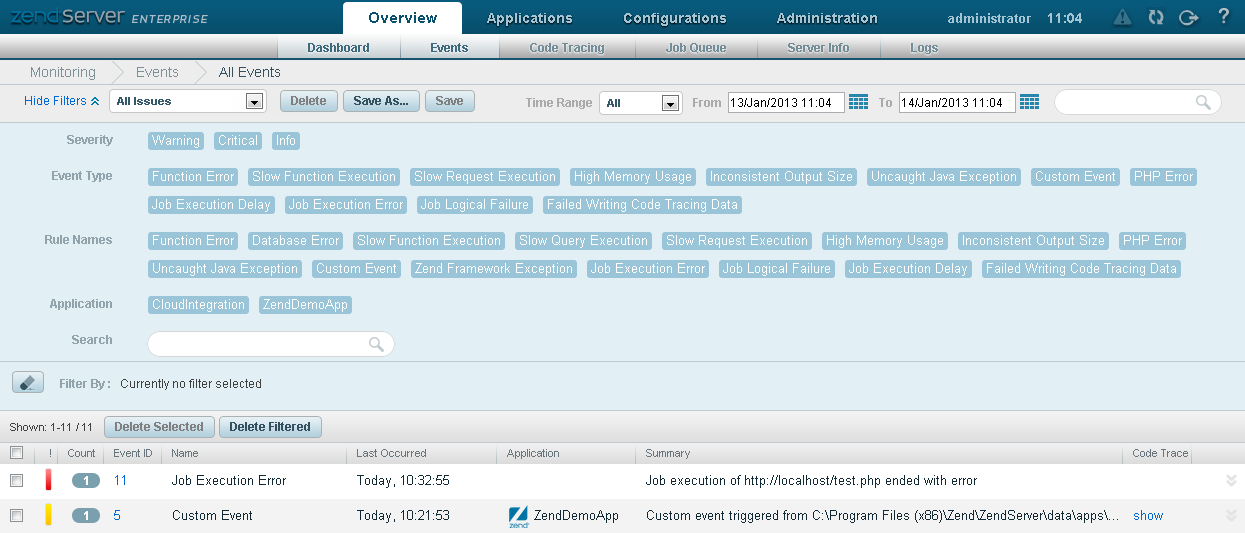

To filter events:

1. In the UI, go to Overview | Events.

2. To filter events by time range, click the 'Time Range' menu, and select a filter. To manually configure the time range, click the calendar icons.
3. In the Filters area, click the Filter-Set drop-down menu, and select a filter-set (Default filters: All Issues, Error Issues, Performance Issues, Resource Issues).
   The included filters are displayed in the Filter By area, and the Events list is filtered accordingly.
4. To further filter events, in the top-left corner of the Filters area , click Show Filters.
   The Filter Action bar, and filter categories are displayed.

5. Click on a filter to add it.
   Each time a different filter is added, an additional selection area will appear in the Filter By area. You can add as many filters you like.
   All selected filters are displayed in the Filter By area, and the Events list is filtered accordingly.
6. To remove a specific filter from the filter-set, click the filter's delete button (X) in the Filter By area.
7. To save the selected filters as a new filter-set, enter a name in the Name field in the Action bar, and click .
   The new filter-set is saved and added to the Filter-Set list.
8. To configure an existing filter-set, select it from the Filter-Set list:
   1. To rename it, click and enter a new name.
   2. To create a new filter-set based on the selected set, add or remove filters according to your personal preferences, and repeat step a.
   3. To delete it, select it from the Filter-Set list, and click .

To clear all selected filters from the Filter By area, click .

To delete an event:

1. In the UI, go to Overview | Events.

2. Filter the events in the Events list.
3. Delete all filtered events by clicking , and clicking OK when prompted.
   All filtered events are deleted from your server and the Events list.

Note:

Zend Server will remove all events on your server answering to the selected filters, even those that are not currently displayed in the Events List.

4. Delete a selection of events by manually selecting events in the list, and clicking , and clicking OK when prompted.
   All selected events are deleted from your server and the Events list.

To view an event:

1. In the UI, go to Overview | Events to display the Events list.

2. Locate an event that interests you (The filter option can be used to decrease the number of events listed in the table, see Filtering Events above).

3. Click on the Event ID link
   -OR-
   click on the Expand View arrow on the right side of the event line, to view an expanded view of the event, and click More Details.

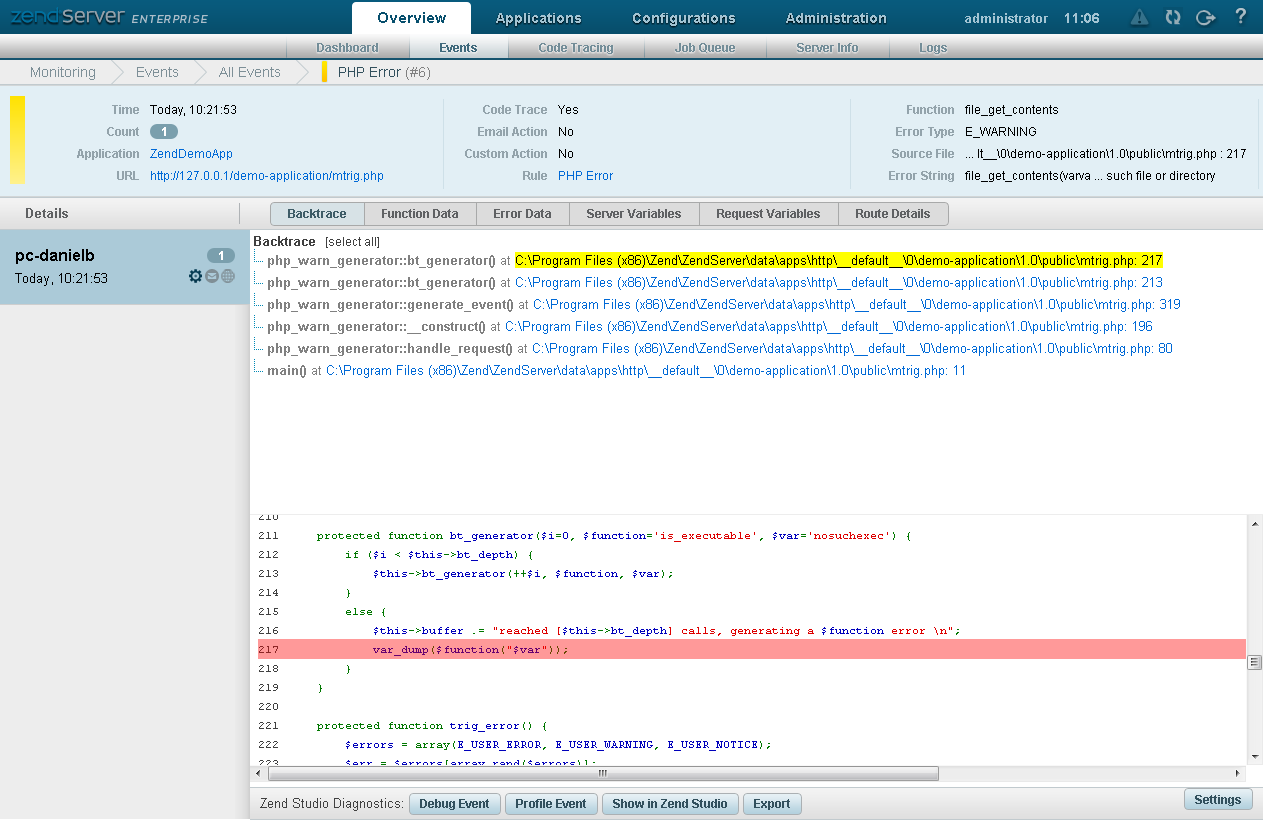

   The Event Details page is displayed.



4. Clicking on an Event Group changes the contents of tabbed display to show the details collected for that specific group of events.
5. Clicking on the Event Details tabs changes the displayed details collected for that specific group of events.

See Events and Event Details for more information on viewing event details.

To diagnose with your IDE:

1. In the UI, go to Overview | Events.
2. Hover over the relevant event, click the drop-down menu on the right-side of the event, and select one of the following options:
   • Debug in IDE - Initiates a debug session for the event URL in your IDE.
   • Profile in IDE - Profiles the event URL, using your IDE Profiler with the same parameters (GET, POST, COOKIE, HTTP headers, etc.).
   • Show in IDE - Opens the file where the event occurred in your IDE. This option makes it possible to use your IDE to edit files and implement changes for multiple servers.
   • Export to IDE - Generates a .zsf file containing the selected event's information that can be imported into your IDE.

-OR-

1. In the UI, go to Overview | Events.
2. In the Events List, click an event ID.
   The Event Details page is displayed.
3. In the IDE Diagnostics area, click an action button:

• - Initiates a debug session for the event URL in your IDE
• - Profiles the event URL, using your IDE Profiler with the same parameters (GET, POST, COOKIE, HTTP headers, etc.).
• - Opens the file where the event occurred in your IDE. This option makes it possible to use your IDE to edit files and implement changes for multiple servers.
• - Generates a .zsf file containing the selected event's information that can be imported into your IDE.
• - Allows you to select the server upon which you would like to perform the IDE diagnostics. See Diagnosing Using an Alternative Server below for more details.

Note:

When you use these actions, make sure that you have Zend Studio on the remote machine, access to the remote server and that the remote server is an allowed host. For more details, see Error: Failed to Communicate with Zend Studio.
