Code Tracing

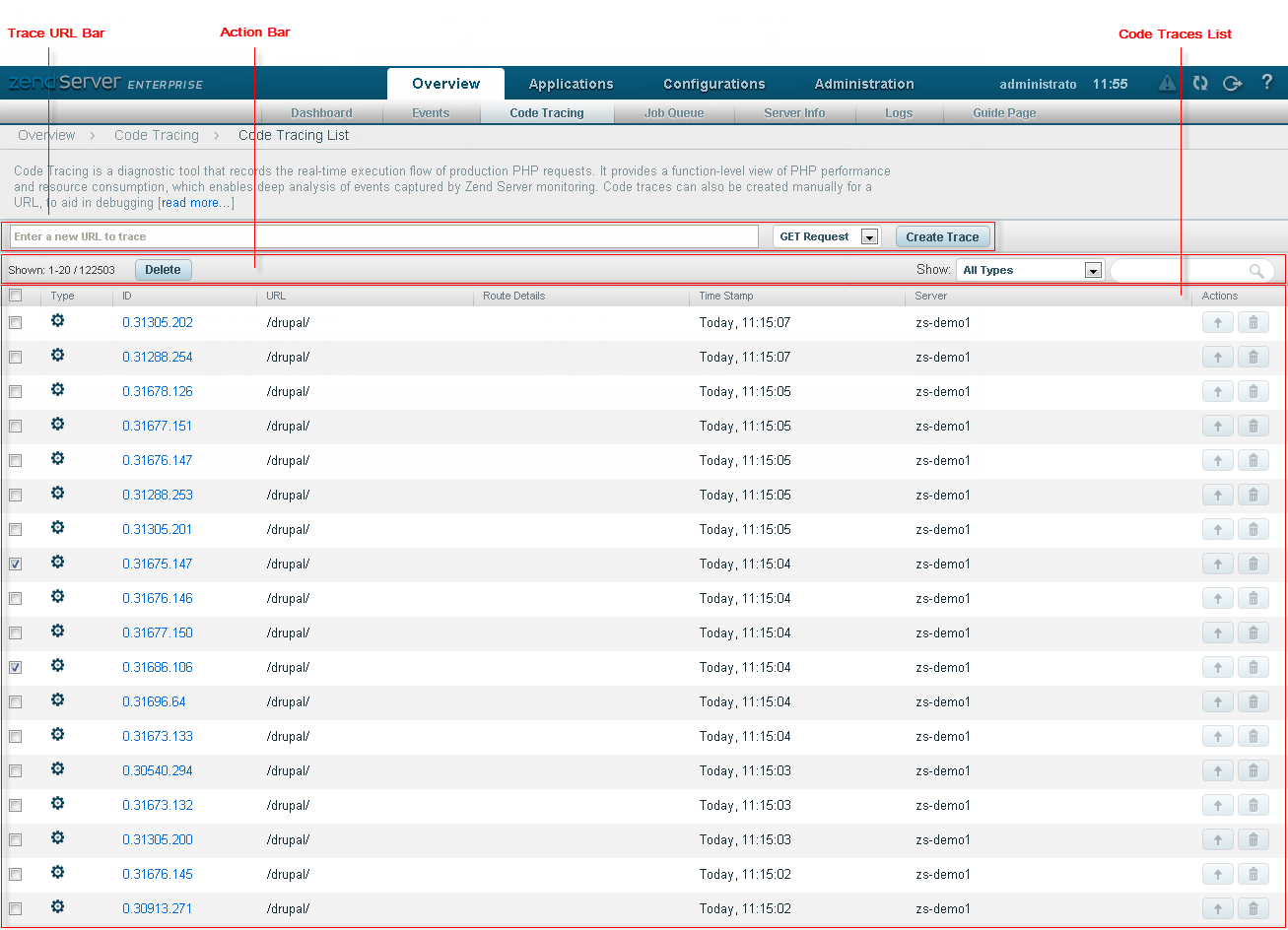

The Trace URL bar is located at the top of the page used to manually run Code Tracing on a specific URL.

How do I manually trigger a code trace?

Name	Button	Description
URL Field		Contains the trace URL.
Request Type		Request Type drop- down menu: - GET Request - POST Request
Create Trace		Triggers manual code tracing for entered URL.

The Trace URL field is used to manually run Code Tracing on a specific URL.

How do I manually trigger a code trace?

The Action bar is used to delete and filter/search for existing traces.

Name	Button	Description
Delete		Delete an existing trace.
Show		Filter drop- down menu: Triggered by Code - Show traces that were triggered by executed script. Triggered by Event - Show traces that were triggered by a monitoring rule. Manual Request - Show traces that were triggered by manually-entered URLs . Triggered by Segfault- A trace triggered by a PHP Error.
Search box		Searches the page for the entered string.

Executed code traces are displayed in a list. The information for each listed trace is sorted into columns:

• Type - Type of trace( Manual , Event-based , Code-based ).
• ID - Linked Trace ID number. Click to view full trace details on the Code Tracing Details page.
• URL - Traced URL.
• Time Stamp - Trace date and time.
• Server - The server that executed the trace.

• Actions -Trace action items (appear when applicable):


  Name	Icon	Description
  Export		Export trace information.
  Remove		Remove trace information.
